7000 Awning Window
Replacement
7000 Awning
The Echoshield 7000 replacement vinyl awning window is engineered for easy operation and maximum ventilation, and styled to fit almost any décor.
Multi-point locking provides added security, and all are available in single and multi-unit combinations.
For privacy and hard to reach areas
Awning windows are one of the most versatile window options. Because they can be placed high on a wall, they offer elevated privacy and are often preferred for bathrooms. Placed over a kitchen sink or counter area, their hand-crank design allows for easier access than other types of windows.
Awning windows make beautiful accent windows when placed below fixed windows. They can also be used as stand-alone windows in place of casement or double hung windows. Because of their innate functionality, they are often preferred for ventilation during rain or snow as they shield the interior from precipitation.

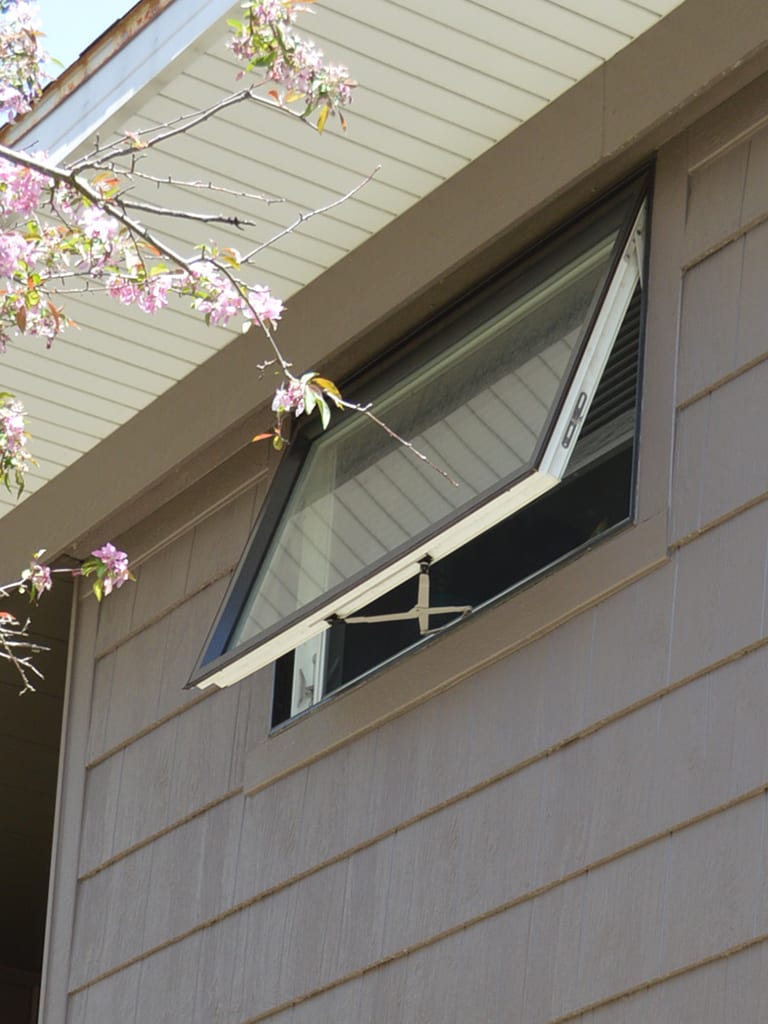

The awning window consists of a single sash that opens outward. Hinges lie along the top of the frame, so that it resembles an awning when open. A hand crank accessible from inside the building operates the opening and closing mechanism.
Standard
Options
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.
Our Energy Star U4 and Energy Star III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*
Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers
ENERGY STAR III
Options
- Clear insulated glass (3/4″)
- Impact Resistance, Tints, Heat Reflection and other options available
* Courtesy Truseal Technologies
Standard
Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.
Standard
Options
Standard
Options
Multiple Grill Patterns Available
NFRC Thermal Performance Data
| Glazing | U-Value | SHGC | VLT |
|---|---|---|---|
| DOE – R5 – Triple | 0.21 | 0.19 | 0.33 |
| Low E w/ Argon | 0.28 | 0.24 | 0.44 |
| High Perf. Low E | 0.32 | 0.24 | 0.44 |
| Clear | 0.41 | 0.53 | 0.54 |
NFRC Testing Chart
Department of Energy R5 Program
Triple Glazing Package
Effective Date: March 1, 2010
| U-FACTOR | SHGC | VT | CR | DBL LOW E | GAS | ||
|---|---|---|---|---|---|---|---|
| SSB | WITHOUT GRIDS | 0.20 | 0.19 | 0.35 | 75 | Y | DOUBLE ARGON |
| SSB | WITH GRIDS | 0.20 | 0.18 | 0.32 | 75 | Y | DOUBLE ARGON |
| DSB | WITHOUT GRIDS | 0.21 | 0.19 | 0.35 | 74 | Y | DOUBLE ARGON |
| DSB | WITH GRIDS | 0.22 | 0.18 | 0.32 | 74 | Y | DOUBLE ARGON |
| PRODUCT | MINIMUM TIP UP SIZE | MAXIMUM LIMITS |
|---|---|---|
| 7000 Awning Window | 20 x 14 | Maximum 47 3/4″ x 40″ dead panel maximum 72″ x 60″ |
PLEASE NOTE:
Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.
Glass must be ordered from an outside source for units larger than 72” one way.
SPECIAL REQUIREMENTS?
Contact Us and We will see if we can Help!
Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.
MADE IN AMERICA
Best of Class Warranty
Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.
MADE IN AMERICA
Standard Exterior Colors
Terrastone
Fieldstone
Black
Bronze
Autumn Red
Hunter Green
Have a color in mind? We can custom match it!
*All representations of colors are mechanically reproduced and may
vary from the actual product. Terms and conditions apply.
Whether You Are A Builder, Architect or Home Owner, Ecoshield Replacement Windows Will Offer You A Lifetime Of Worry-Free Operation, Backed By One Of The Best Warranties In The Industry.
* Rating, qualification, or compliancy is dependent on selected options and window style.
CONTACT US today
let us find the right replacement windows for your home.
ECOLOGY
• Low Energy Consumption
• Smaller Carbon Footprint
• Durable, Sustainable Materials
ECONOMY
• Lower Energy Bills
• Low Ownership Cost
• Best-of-Class Warranty
COMFORT
• Low Air Infiltration
• High-Tech UV Protection
• Outstanding Sound Reduction
