700 Awning Window

New Construction

easy operation and maximum ventilation

700 Awning

The Echoshield 700 new construction vinyl awning window is engineered for easy operation and maximum ventilation, and styled to fit almost any décor.



Multi-point locking provides added security, and all are available in single and multi-unit combinations.

For privacy and hard to reach areas



Awning windows are one of the most versatile window options. Because they can be placed high on a wall, they offer elevated privacy and are often preferred for bathrooms. Placed over a  kitchen sink or counter area, their hand-crank design allows for easier access than other types of windows.



Awning windows make beautiful accent windows when placed below  fixed windows. They can also be used as stand-alone windows in place of casement or double hung windows. Because of their innate functionality, they are often preferred for ventilation during rain or snow as they shield the interior from precipitation.



The awning window consists of a single sash that opens outward. Hinges lie along the top of the frame, so that it resembles an awning when open. A hand crank accessible from inside the building operates the opening and closing mechanism.

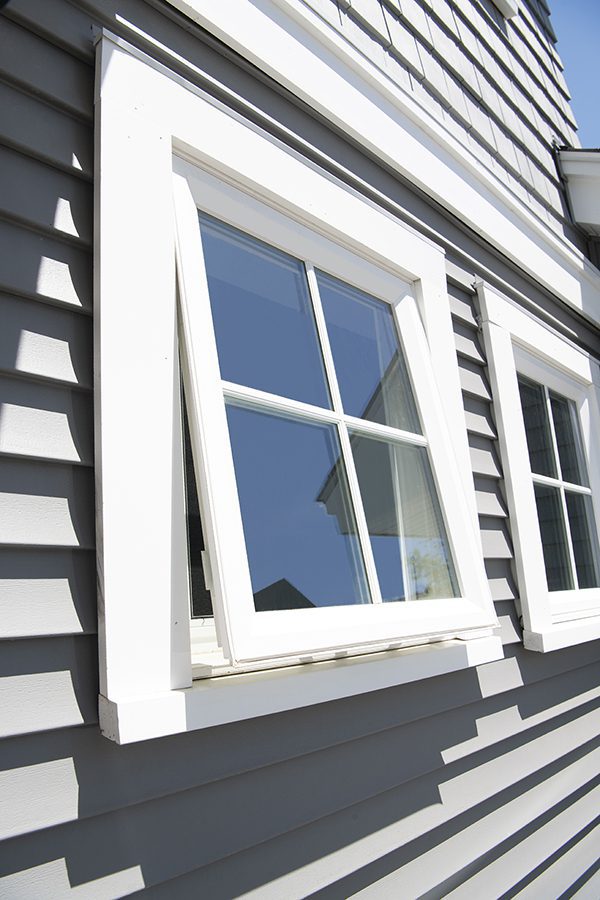

photo of awning window

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Beveled Sash
  • Sash Snubbers
    design
    Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

    Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

    Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers

    ENERGY STAR III

    Energy Star III

    Options

    • Energy Star III energy star
      (3/4″) (Recommended)
    • DOE R5 energy star
      Triple Glass Package  (1″)
    • Clear insulated glass (3/4″)
    • Impact Resistance, Tints, Heat Reflection and other options available

    * Courtesy Truseal Technologies

    Standard

    • DP 50 Rating
    performance winter window

    Standard

    • Produced in white or beige to seamlessly match your window frame
    • Single Lever Multi-Point Locking System

    Options

    • Folding Hardware

    Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

    Standard

    • Double weather stripped Sash

    Options

    • Nailing fin with J Channel
    • Brickmold J Channel/ or no J Channel
    • 1/2″ and 3/4″ Sheetrock Returns
    • Primed Solid Pine Applied Extension Jambs 4-9/16”, 6-9/16” and Custom
    Extension Jamb

    Standard

    • Extruded aluminum framed fiberglass full screen

    Options

    • Aluminum Screening Material
    Screen in Awning

    Multiple Grill Patterns Available

    • 3/4″ Contoured Grill Between the Glass

      Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.

    • 3/4″ Contoured SDL with spacer bar

      Our simulated divided light grill incorporates a space giving the look of true divided light

    • 2″ Contoured SDL with spacer bar

      for simulated Double Hung look

    grill

    NFRC Thermal Performance Data

    Glazing U-Value SHGC VLT
    DOE – R5 – Triple 0.21 0.19 0.33
    Low E w/ Argon 0.28 0.24 0.44
    High Perf. Low E 0.32 0.24 0.44
    Clear 0.41 0.53 0.54

    NFRC Testing Chart
    Department of Energy R5 Program
    Triple Glazing Package

    Effective Date: March 1, 2010

    U-FACTOR SHGC VT CR DBL LOW E GAS
    SSB WITHOUT GRIDS 0.20 0.19 0.35 75 Y DOUBLE ARGON
    SSB WITH GRIDS 0.20 0.18 0.32 75 Y DOUBLE ARGON
    DSB WITHOUT GRIDS 0.21 0.19 0.35 74 Y DOUBLE ARGON
    DSB WITH GRIDS 0.22 0.18 0.32 74 Y DOUBLE ARGON
    700 Awning Cross Section

    Kas-Kel  700 Awning Windows



    Call Size Manufactured Rough DO Upper DO Lower Opening Clear
    1-8 X 1-8 21 1/2 X 22 1/2 22 X 23 16 11/16 X 17 11/16 1-8 X 1-8 21 1/2 X 22 1/2 22 X 23
    1-8 X 2-0 21 1/2 X 26 1/2 22 X 27 16 11/16 X 21 11/16 1-8 X 2-0 21 1/2 X 26 1/2 22 X 27
    1-8 X 2-10 21 1/2 X 36 1/2 22 X 37 16 11/16 X 31 11/16 1-8 X 2-10 21 1/2 X 36 1/2 22 X 37
    1-8 X 3-2 21 1/2 X 40 1/2 22 X 41 16 11/16 X 35 11/16 1-8 X 3-2 21 1/2 X 40 1/2 22 X 41
    700 Awning

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    Best of Class Warranty

    • Lifetime Mechanical Parts
    • Lifetime Vinyl Extrusions
    • Lifetime Insulating Glass
    • Glass Breakage Coverage

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    girl

    Standard Colors

    Terrastone
    Terrastone
    Fieldstone
    Fieldstone
    Photo of Black WIndow Option
    Black
    Bronze
    Bronze
    Autumn Red
    Autumn Red
    Hunter Green
    Hunter Green

    Have a color in mind? We can custom match it!

    *All representations of colors are mechanically reproduced and may
    vary from the actual product. Terms and conditions apply.

    Whether you are a builder, architect or home owner, Ecoshield new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
    AAMA Logo
    NFRC Certified

    * Rating, qualification, or compliancy is dependent on selected options and window style.
