300 Double Hung

New Construction

clean look and easy installation

Description

Brickmold Series



The 300 Double Hung window utilizes a Classic Brickmold styling which integrates a built -in J-channel pocket for siding and nail-fin for installation. (filler available)

An elegant, classic look and advanced design with high thermal ratings and glazing package options that meet or exceed Energy Star requirements.

Dual Ventilation Access

Kasson & Keller’s double hung windows allow users to control ventilation flow with vertically sliding sashes that open from both the top and bottom.



The sashes can be opened in three configurations. Either the top or bottom can be fully opened while the opposite sash is closed, or both sashes can be opened halfway simultaneously. In all three positions, the double hung window provides a maximum opening of half the total window size. Each double hung window is equipped with a design feature that holds the open sash or sashes in place at any position.



Most of our double hung windows also have a tilt-in feature that allow for easy cleaning of the outside window from the inside of the building, making multi-story windows hassle-free to clean.

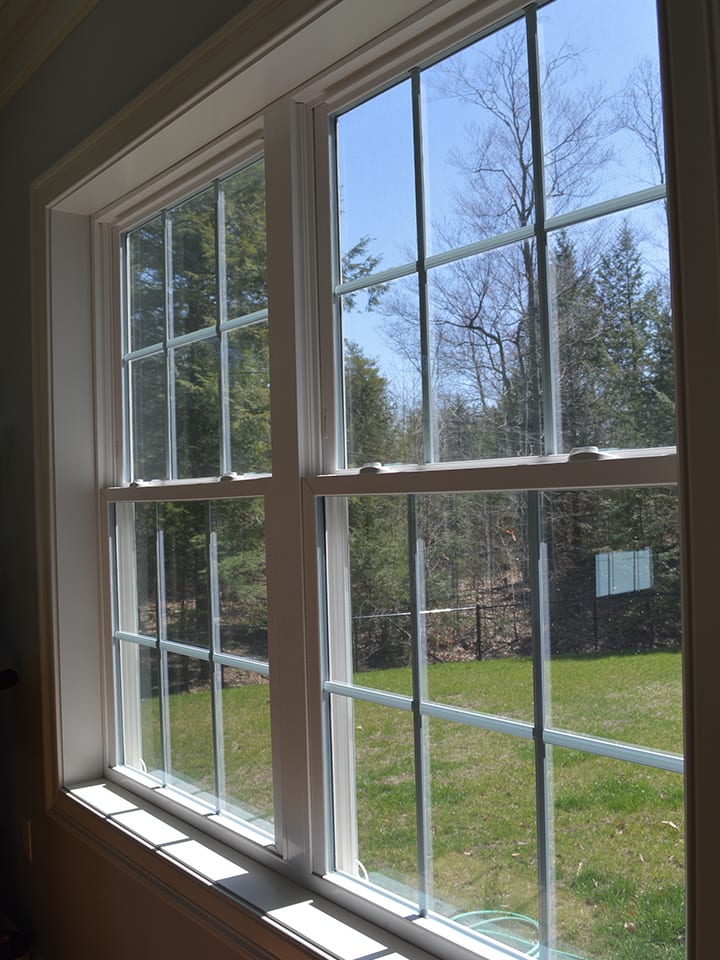

Brickmold trim

Glass Options

Energy Star III and Energy star U4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

  • Energy Star III energy star
Options
  • Energy Star U4 Glass  energy star
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

Energy Star III
More About Glass Options

Performance

Standard

  • DP 35 Rating

Options

  • DP 50 Rating
More about DP Ratings
performance winter window

Bottom and top sash tilt in for easy cleaning

Materials

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Double weather stripped Meeting Rail
  • Full Fusion Welded Sash and Frame
  • Sloped Sill and Interlock Leg
  • Composite Reinforced Meeting Rail
  • Bottom and Top Sash Tilt in for easy cleaning
  • 3-1/4″ Frame Depth
design

Options

  • J Channel Filler
  • Primed Applied Extension Jambs 4-9/16, 6-9/16 and Custom
  • Solid Pine Applied Extension Jambs 4-9/16, 6-9/16 and Custom
More About Vinyl Construction
Vinyl Components

Hardware

Superior Cam Lock

  • Our Cam Locks are made of alloyed cast steel to stand up to frequent use.
    (inferior vinyl windows have plastic locks)
  • All windows over 23 1/2 inches have 2 sash locks for maximum protection
  • Produced in white or beige to seamlessly match your window frame
  • Increased leverage assures a  weather tight seal when locked

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware
Camlock

Screens

Standard

  • Aluminum framed fiberglass full screen

Options

  • Aluminum Extruded Fiberglass 1/2 screen
  • Full Flex Screen
  • Aluminum Screening Material
More About Screen Options
flexscreen

Grills

Multiple Grill Patterns Available

  • 3/4″ Contoured Grill Between the Glass

    Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.

  • 3/4″ Contoured SDL with spacer bar

    Our simulated divided light grill incorporates a space giving the look of true divided light

Grid Patterns
Profiles
grill

Sizing

Ecoshield 300 Series (Brickmold) – Double Hung

Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 X 2-10 21 1/2 X 36 1/2 22 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 X 3-2 21 1/2 X 40 1/2 22 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 X 3-10 21 1/2 X 48 1/2 22 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 X 4-2 21 1/2 X 52 1/2 22 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 X 4-6 21 1/2 X 56 1/2 22 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 X 5-2 21 1/2 X 64 1/2 22 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 X 5-6 21 1/2 X 68 1/2 22 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 X 5-10 21 1/2 X 72 1/2 22 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 / 1-8 X 2-10 43 1/2 X 36 1/2 44 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 / 1-8 X 3-2 43 1/2 X 40 1/2 44 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 / 1-8 X 3-10 43 1/2 X 48 1/2 44 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 / 1-8 X 4-2 43 1/2 X 52 1/2 44 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 / 1-8 X 4-6 43 1/2 X 56 1/2 44 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 / 1-8 X 4-10 43 1/2 X 60 1/2 44 X 61 14 5/8 X 26 1/8 15 5/8 X 27 1/8 16 3/4 X 24 3/4 2.879 sq ft
1-8 / 1-8 X 5-2 43 1/2 X 64 1/2 44 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 / 1-8 X 5-6 43 1/2 X 68 1/2 44 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 / 1-8 X 5-10 43 1/2 X 72 1/2 44 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
v 65 1/2 X 36 1/2 66 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 / 1-8 / 1-8 X 3-2 65 1/2 X 40 1/2 66 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 / 1-8 / 1-8 X 3-10 65 1/2 X 48 1/2 66 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 / 1-8 / 1-8 X 4-2 65 1/2 X 52 1/2 66 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 / 1-8 / 1-8 X 4-6 65 1/2 X 56 1/2 66 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 / 1-8 / 1-8 X 4-10 65 1/2 X 60 1/2 66 X 61 14 5/8 X 26 1/8 15 5/8 X 27 1/8 16 3/4 X 24 3/4 2.879 sq ft
1-8 / 1-8 / 1-8 X 5-2 65 1/2 X 64 1/2 66 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 / 1-8 / 1-8 X 5-6 65 1/2 X 68 1/2 66 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 / 1-8 / 1-8 X 5-10 65 1/2 X 72 1/2 66 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 X 2-10 25 1/2 X 36 1/2 26 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 X 3-2 25 1/2 X 40 1/2 26 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 X 3-10 25 1/2 X 48 1/2 26 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 X 4-2 25 1/2 X 52 1/2 26 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 X 4-6 25 1/2 X 56 1/2 26 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 X 4-10 25 1/2 X 60 1/2 26 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 X 5-2 25 1/2 X 64 1/2 26 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 X 5-6 25 1/2 X 68 1/2 26 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
2-0 X 5-10 25 1/2 X 72 1/2 26 X 73 18 5/8 X 32 1/8 19 5/8 X 33 1/8 20 3/4 X 30 3/4 4.431 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 / 2-0 X 2-10 51 1/2 X 36 1/2 52 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 / 2-0 X 3-2 51 1/2 X 40 1/2 52 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 / 2-0 X 3-10 51 1/2 X 48 1/2 52 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 / 2-0 X 4-2 51 1/2 X 52 1/2 52 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 / 2-0 X 4-6 51 1/2 X 56 1/2 52 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 / 2-0 X 4-10 51 1/2 X 60 1/2 52 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 / 2-0 X 5-2 51 1/2 X 64 1/2 52 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 / 2-0 X 5-6 51 1/2 X 68 1/2 52 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
2-0 / 2-0 X 5-10 51 1/2 X 72 1/2 52 X 73 18 5/8 X 32 1/8 19 5/8 X 33 1/8 20 3/4 X 30 3/4 4.431 sq ft
2-0 / 2-0 / 2-0 X 2-10 77 1/2 X 36 1/2 78 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 / 2-0 / 2-0 X 3-2 77 1/2 X 40 1/2 78 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 / 2-0 / 2-0 X 3-10 77 1/2 X 48 1/2 78 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 / 2-0 / 2-0 X 4-2 77 1/2 X 52 1/2 78 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 / 2-0 / 2-0 X 4-6 77 1/2 X 56 1/2 78 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 / 2-0 / 2-0 X 4-10 77 1/2 X 60 1/2 78 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 / 2-0 / 2-0 X 5-2 77 1/2 X 64 1/2 78 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 / 2-0 / 2-0 X 5-6 77 1/2 X 68 1/2 78 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
2-0 / 2-0 / 2-0 X 5-10 77 1/2 X 72 1/2 78 X 73 18 5/8 X 32 1/8 19 5/8 X 33 1/8 20 3/4 X 30 3/4 4.431 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 X 2-10 29 1/2 X 36 1/2 30 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 X 3-2 29 1/2 X 40 1/2 30 X 41  22 5/8 X 16 1/8 23 5/8 X 17 1/ 24 3/4 X 14 3/4 2.535 sq ft
2-4 X 3-10 29 1/2 X 48 1/2 30 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8 24 3/4 X 18 3/4 3.223 sq ft
2-4 X 4-2 29 1/2 X 52 1/2 30 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8 24 3/4 X 20 3/4 3.566 sq ft
2-4 X 4-6 29 1/2 X 56 1/2 30 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 X 4-10 29 1/2 X 60 1/2 30 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 X 5-2 29 1/2 X 64 1/2 30 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 X 5-6 29 1/2 X 68 1/2 30 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 X 5-10  29 1/2 X 72 1/2 30 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 / 2-4 X 2-10 59 1/2 X 36 1/2 60 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 / 2-4 X 3-2 59 1/2 X 40 1/2 60 X 41 22 5/8 X 16 1/8 23 5/8 X 17 1/8 24 3/4 X 14 3/4 2.535 sq ft
2-4 / 2-4 X 3-10 59 1/2 X 48 1/2 60 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8  24 3/4 X 18 3/4 3.223 sq ft
2-4 / 2-4 X 4-2 59 1/2 X 52 1/2 60 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8  24 3/4 X 20 3/4 3.566 sq ft
2-4 / 2-4 X 4-6 59 1/2 X 56 1/2 60 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 / 2-4 X 4-10 59 1/2 X 60 1/2 60 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 / 2-4 X 5-2 59 1/2 X 64 1/2 60 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 / 2-4 X 5-6 59 1/2 X 68 1/2 60 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 / 2-4 X 5-10 59 1/2 X 72 1/2 60 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
2-4 / 2-4 X 5-10 59 1/2 X 72 1/2 60 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
2-4 / 2-4 / 2-4 X 2-10 89 1/2 X 36 1/2 90 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 / 2-4 / 2-4 X 3-2 89 1/2 X 40 1/2 90 X 41 22 5/8 X 16 1/8 23 5/8 X 17 1/8 24 3/4 X 14 3/4 2.535 sq ft
2-4 / 2-4 / 2-4 X 3-10 89 1/2 X 48 1/2 90 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8 24 3/4 X 18 3/4 3.223 sq ft
2-4 / 2-4 / 2-4 X 4-2 89 1/2 X 52 1/2 90 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8 24 3/4 X 20 3/4 3.566 sq ft
2-4 / 2-4 / 2-4 X 4-6 89 1/2 X 56 1/2 90 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 / 2-4 / 2-4 X 4-10 89 1/2 X 60 1/2 90 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 / 2-4 / 2-4 X 5-2 89 1/2 X 64 1/2 90 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 / 2-4 / 2-4 X 5-6 89 1/2 X 68 1/2 90 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 / 2-4 / 2-4 X 5-10 89 1/2 X 72 1/2 90 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
2-6 X 2-10 31 1/2 X 36 1/2 32 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 X 3-2 31 1/2 X 40 1/2 32 X 41 24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
 2-6 X 3-10 31 1/2 X 48 1/2 32 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 X 4-2 31 1/2 X 52 1/2 32 X 53 24 5/8 X 22 1/8  25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 X 4-6 31 1/2 X 56 1/2 32 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
 2-6 X 4-10 31 1/2 X 60 1/2 32 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8  26 3/4 X 24 3/4 4.598 sq ft
 2-6 X 5-2 31 1/2 X 64 1/2 32 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
 2-6 X 5-6 31 1/2 X 68 1/2 32 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 X 5-10 31 1/2 X 72 1/2 32 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
2-6 / 2-6 X 2-10 63 1/2 X 36 1/2 64 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 / 2-6 X 3-2 63 1/2 X 40 1/2 64 X 41  24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
2-6 / 2-6 X 3-10 63 1/2 X 48 1/2 64 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 / 2-6 X 4-2 63 1/2 X 52 1/2 64 X 53 24 5/8 X 22 1/8 25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 / 2-6 X 4-6 63 1/2 X 56 1/2 64 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
2-6 / 2-6 X 4-10 63 1/2 X 60 1/2 64 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8 26 3/4 X 24 3/4 4.598 sq ft
2-6 / 2-6 X 5-2 63 1/2 X 64 1/2 64 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
2-6 / 2-6 X 5-6 63 1/2 X 68 1/2 64 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 / 2-6 X 5-10 63 1/2 X 72 1/2 64 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
2-6 / 2-6 / 2-6 X 2-10 95 1/2 X 36 1/2  96 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 / 2-6 / 2-6 X 3-2 95 1/2 X 40 1/2 96 X 41 24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
2-6 / 2-6 / 2-6 X 3-10 95 1/2 X 48 1/2 96 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 / 2-6 / 2-6 X 4-2 95 1/2 X 52 1/2 96 X 53 24 5/8 X 22 1/8 25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 / 2-6 / 2-6 X 4-6 95 1/2 X 56 1/2 96 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
2-6 / 2-6 / 2-6 X 4-10 95 1/2 X 60 1/2 96 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8 26 3/4 X 24 3/4 4.598 sq ft
2-6 / 2-6 / 2-6 X 5-2 95 1/2 X 64 1/2 96 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
2-6 / 2-6 / 2-6 X 5-6 95 1/2 X 68 1/2 96 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 / 2-6 / 2-6 X 5-10 95 1/2 X 72 1/2 96 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
2-8 X 2-10 33 1/2 X 36 1/2 34 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 X 3-2 33 1/2 X 40 1/2 34 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 X 3-10 33 1/2 X 48 1/2 34 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 X 4-2 33 1/2 X 52 1/2 34 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 X 4-6 33 1/2 X 56 1/2 34 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 X 4-10 33 1/2 X 60 1/2 34 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 X 5-2 33 1/2 X 64 1/2 34 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 X 5-6 33 1/2 X 68 1/2 34 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 X 5-10 33 1/2 X 72 1/2 34 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
2-8 / 2-8 X 2-10 67 1/2 X 36 1/2 68 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 / 2-8 X 3-2 67 1/2 X 40 1/2 68 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 / 2-8 X 3-10 67 1/2 X 48 1/2 68 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 / 2-8 X 4-2 67 1/2 X 52 1/2 68 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 / 2-8 X 4-6 67 1/2 X 56 1/2 68 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 / 2-8 X 4-10 67 1/2 X 60 1/2 68 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 / 2-8 X 5-2 67 1/2 X 64 1/2 68 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 / 2-8 X 5-6 67 1/2 X 68 1/2 68 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 / 2-8 X 5-10 67 1/2 X 72 1/2 68 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
2-8 / 2-8 / 2-8 X 2-10 101 1/2 X 36 1/2 102 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 / 2-8 / 2-8 X 3-2 101 1/2 X 40 1/2 102 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 / 2-8 / 2-8 X 3-10 101 1/2 X 48 1/2 102 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 / 2-8 / 2-8 X 4-2 101 1/2 X 52 1/2 102 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 / 2-8 / 2-8 X 4-6 101 1/2 X 56 1/2 102 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 / 2-8 / 2-8 X 4-10 101 1/2 X 60 1/2 102 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 / 2-8 / 2-8 X 5-2 101 1/2 X 64 1/2 102 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 / 2-8 / 2-8 X 5-6 101 1/2 X 68 1/2 102 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 / 2-8 / 2-8 X 5-10 101 1/2 X 72 1/2 102 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
3-0 X 2-10 37 1/2 X 36 1/2 38 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 X 3-2 37 1/2 X 40 1/2 38 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 X 3-10 37 1/2 X 48 1/2 38 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 X 4-2 37 1/2 X 52 1/2 38 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 X 4-6 37 1/2 X 56 1/2 38 X 57 30 5/8 X 24 1/8  31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 X 4-10 37 1/2 X 60 1/2 38 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 X 5-2 37 1/2 X 64 1/2 38 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 X 5-6 37 1/2 X 68 1/2 38 X 69  30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 X 5-10 37 1/2 X 72 1/2 38 X 73 30 5/8 X 32 1/8  31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
3-0 / 3-0 X 2-10 75 1/2 X 36 1/2 76 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 / 3-0 X 3-2 75 1/2 X 40 1/2 76 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 / 3-0 X 3-10 75 1/2 X 48 1/2 76 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 / 3-0 X 4-2 75 1/2 X 52 1/2 76 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 / 3-0 X 4-6 75 1/2 X 56 1/2 76 X 57 30 5/8 X 24 1/8 31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 / 3-0 X 4-10 75 1/2 X 60 1/2 76 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 / 3-0 X 5-2 75 1/2 X 64 1/2 76 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 / 3-0 X 5-6 75 1/2 X 68 1/2 76 X 69 30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 / 3-0 X 5-10 75 1/2 X 72 1/2 76 X 73 30 5/8 X 32 1/8 31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
3-0 / 3-0 / 3-0 X 2-10 113 1/2 X 36 1/2 114 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 / 3-0 / 3-0 X 3-2 113 1/2 X 40 1/2 114 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 / 3-0 / 3-0 X 3-10 113 1/2 X 48 1/2 114 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 / 3-0 / 3-0 X 4-2 113 1/2 X 52 1/2 114 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 / 3-0 / 3-0 X 4-6 113 1/2 X 56 1/2 114 X 57 30 5/8 X 24 1/8 31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 / 3-0 / 3-0 X 4-10 113 1/2 X 60 1/2 114 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 / 3-0 / 3-0 X 5-2 113 1/2 X 64 1/2 114 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 / 3-0 / 3-0 X 5-6 113 1/2 X 68 1/2 114 X 69 30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 / 3-0 / 3-0 X 5-10 113 1/2 X 72 1/2 114 X 73 30 5/8 X 32 1/8 31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
 3-4 X 2-10 41 1/2 X 36 1/2 42 X 37 34 5/8 X 14 1/8  35 5/8 X 15 1/8 36 3/4 X 12 3/4 3.254 sq ft
3-4 X 3-2 41 1/2 X 40 1/2 42 X 41 34 5/8 X 16 1/8 35 5/8 X 17 1/8 36 3/4 X 14 3/4 3.764 sq ft
3-4 X 3-10  41 1/2 X 48 1/2 42 X 49 34 5/8 X 20 1/8 35 5/8 X 21 1/8 36 3/4 X 18 3/4 4.785 sq ft
3-4 X 4-2 41 1/2 X 52 1/2 42 X 53 34 5/8 X 22 1/8 35 5/8 X 23 1/8 36 3/4 X 20 3/4 5.296 sq ft
3-4 X 4-6 41 1/2 X 56 1/2 42 X 57 34 5/8 X 24 1/8 35 5/8 X 25 1/8 36 3/4 X 22 3/4 5.806 sq ft
3-4 X 4-10 41 1/2 X 60 1/2 42 X 61 34 5/8 X 26 1/8 35 5/8 X 27 1/8 36 3/4 X 24 3/4 6.316 sq ft
3-4 X 5-2 41 1/2 X 64 1/2 42 X 65 34 5/8 X 28 1/8 35 5/8 X 29 1/8 36 3/4 X 26 3/4 6.827 sq ft
3-4 X 5-6 41 1/2 X 68 1/2 42 X 69 34 5/8 X 30 1/8 35 5/8 X 31 1/8 36 3/4 X 28 3/4 7.337 sq ft
3-4 X 5-10 41 1/2 X 72 1/2 42 X 73 34 5/8 X 32 1/8 35 5/8 X 33 1/8 36 3/4 X 30 3/4 7.848 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-4 / 3-4 X 2-10 83 1/2 X 36 1/2 84 X 37 34 5/8 X 14 1/8 35 5/8 X 15 1/8 36 3/4 X 12 3/4 3.254 sq ft
3-4 / 3-4 X 3-2 83 1/2 X 40 1/2 84 X 41 34 5/8 X 16 1/8 35 5/8 X 17 1/8 36 3/4 X 14 3/4 3.764 sq ft
3-4 / 3-4 X 3-10 83 1/2 X 48 1/2 84 X 49 34 5/8 X 20 1/8 35 5/8 X 21 1/8 36 3/4 X 18 3/4 4.785 sq ft
3-4 / 3-4 X 4-2 83 1/2 X 52 1/2 84 X 53 34 5/8 X 22 1/8 35 5/8 X 23 1/8 36 3/4 X 20 3/4 5.296 sq ft
3-4 / 3-4 X 4-6 83 1/2 X 56 1/2 84 X 57 34 5/8 X 24 1/8 35 5/8 X 25 1/8 36 3/4 X 22 3/4 5.806 sq ft
3-4 / 3-4 X 4-10 83 1/2 X 60 1/2 84 X 61 34 5/8 X 26 1/8 35 5/8 X 27 1/8 6 3/4 X 24 3/4 6.316 sq ft
3-4 / 3-4 X 5-2 83 1/2 X 64 1/2 84 X 65 34 5/8 X 28 1/8 35 5/8 X 29 1/8 36 3/4 X 26 3/4 6.827 sq ft
3-4 / 3-4 X 5-6 83 1/2 X 68 1/2 84 X 69 34 5/8 X 30 1/8 35 5/8 X 31 1/8 36 3/4 X 28 3/4 7.337 sq ft
3-4 / 3-4 X 5-10 83 1/2 X 72 1/2 84 X 73 34 5/8 X 32 1/8 35 5/8 X 33 1/8 36 3/4 X 30 3/4 7.848 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-8 X 2-10 45 1/2 X 36 1/2 46 X 37 38 5/8 X 14 1/8 39 5/8 X 15 1/8  40 3/4 X 12 3/4 3.608 sq ft
3-8 X 3-2 45 1/2 X 40 1/2 46 X 41 38 5/8 X 16 1/8 39 5/8 X 17 1/8 40 3/4 X 14 3/4 4.174 sq ft
3-8 X 3-10 45 1/2 X 48 1/2 46 X 49 38 5/8 X 20 1/8 39 5/8 X 21 1/8 40 3/4 X 18 3/4 5.306 sq ft
3-8 X 4-2 45 1/2 X 52 1/2 46 X 53 38 5/8 X 22 1/8 39 5/8 X 23 1/8 40 3/4 X 20 3/4 5.872 sq ft
3-8 X 4-6 45 1/2 X 56 1/2 46 X 57 38 5/8 X 24 1/8 39 5/8 X 25 1/8 40 3/4 X 22 3/4 6.438 sq ft
3-8 X 4-10 45 1/2 X 60 1/2 46 X 61 38 5/8 X 26 1/8 39 5/8 X 27 1/8 40 3/4 X 24 3/4 7.004 sq ft
3-8 X 5-2 45 1/2 X 64 1/2 46 X 65 38 5/8 X 28 1/8 39 5/8 X 29 1/8 40 3/4 X 26 3/4 7.57 sq ft
3-8 X 5-6 45 1/2 X 68 1/2 46 X 69 38 5/8 X 30 1/8 39 5/8 X 31 1/8 40 3/4 X 28 3/4 8.136 sq ft
3-8 X 5-10 45 1/2 X 72 1/2 46 X 73 38 5/8 X 32 1/8 39 5/8 X 33 1/8 40 3/4 X 30 3/4 8.702 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-8 / 3-8 X 2-10 91 1/2 X 36 1/2 92 X 37 38 5/8 X 14 1/8 39 5/8 X 15 1/8 40 3/4 X 12 3/4 3.608 sq ft
3-8 / 3-8 X 3-2 91 1/2 X 40 1/2 92 X 41 38 5/8 X 16 1/8 39 5/8 X 17 1/8  40 3/4 X 14 3/4 4.174 sq ft
3-8 / 3-8 X 3-10 91 1/2 X 48 1/2 92 X 49 38 5/8 X 20 1/8 39 5/8 X 21 1/8 40 3/4 X 18 3/4 5.306 sq ft
3-8 / 3-8 X 4-2 91 1/2 X 52 1/2 92 X 53 38 5/8 X 22 1/8 39 5/8 X 23 1/8  40 3/4 X 20 3/4 5.872 sq ft
3-8 / 3-8 X 4-6 91 1/2 X 56 1/2 92 X 57 38 5/8 X 24 1/8 39 5/8 X 25 1/8 40 3/4 X 22 3/4 6.438 sq ft
3-8 / 3-8 X 4-10 91 1/2 X 60 1/2 92 X 61 38 5/8 X 26 1/8 39 5/8 X 27 1/8 40 3/4 X 24 3/4 7.004 sq ft
3-8 / 3-8 X 5-2 91 1/2 X 64 1/2 92 X 65 38 5/8 X 28 1/8 39 5/8 X 29 1/8 40 3/4 X 26 3/4 7.57 sq ft
3-8 / 3-8 X 5-6 91 1/2 X 68 1/2  92 X 69 38 5/8 X 30 1/8 39 5/8 X 31 1/8 40 3/4 X 28 3/4 8.136 sq ft
3-8 / 3-8 X 5-10 91 1/2 X 72 1/2 92 X 73 38 5/8 X 32 1/8 39 5/8 X 33 1/8 40 3/4 X 30 3/4 8.702 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-0 / 3-0 x 3-0 35-1/2 x 35-1/2 36 x 36 14-3/16 x 29-7/16 14-3/16 x 29-7/16 12-3/4 x 30-1/2 2.70 sq ft
3-0 / 3-0 x 4-0 35-1/2 x 47-1/2 36 x 48 14-3/16 x 41-7/16 14-3/16 x 41-7/16 12-3/4 x42-1/2 3.75 sq ft
4-0 / 4-0 x 3-0 47-1/2 x 35-1/2 48 x 36 20-3/16 x 29-7/16 18-3/4 x 30-1/2 18-3/4 x 30-1/2 3.97 sq ft
4-0 / 4-0 x 4-0 47-1/2 x 47-1/2 48 x 48 20-3/16 x 41-7/16 18-3/4 x 42-1/2 18-3/4 x 42-1/2 5.53 sq ft
5-0 / 5-0 x 3-0 59-1/2 x 35-1/2 60 x 36 26-3/16 x 29-7/16 24-3/4 x 30-1/2 24-3/4 x 30-1/2 5.24 sq ft
5-0 / 5-0 x 4-0 59-1/2 x 47-1/2 60 x 48 26-3/16 x 41-7/16 24-3/4 x 42-1/2 24-3/4 x 42-1/2 7.30 sq ft
6-0 / 6-0 x 3-0 71-1/2 x 35-1/2 72 x 36 32-3/16 x 29-7/16 30-3/4 x 30-1/2 30-3/4 x 30-1/2 6.50 sq ft
6-0 / 6-0 x 4-0 71-1/2 x 47-1/2 72 x 48 32-3/16 x 41-7/16 30-3/4 x 42-1/2 30-3/4 x 42-1/2 9.07 sq ft

Thermal Data

NFRC Thermal Performance Data

NFRC Thermal Performance Data (with Grids)

Cross Section

300 DH
pdf download
dwg download

Brochure

300 Brickmold Brochure
One Page Download
Full Brochure

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty

Best of Class Warranty

  • Lifetime Insulating Glass
  • Lifetime Vinyl Extrusions
  • Glass Breakage Coverage
  • Lifetime Mechanical Parts

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty
window girl

Standard Exterior Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Photo of Black WIndow Option
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

300 Double Hung
300 Double Hung
New Construction
300 Picture
300 Picture
New Construction
300 Rolling
300 Rolling
New Construction
Mill Pond Way
Mill Pond Way
Creative Engineering
Bedford Hills Apartments
Bedford Hills Apartments
Consistent Design
LeBaron County Club
LeBaron County Club
Innovation with Flat Casing
Edinburg Common School
Edinburg Common School
DOE R-5 Energy Efficiency
Whether you are a builder, architect or home owner, Ecoshield new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.

CONTACT US  today

let us find the right replacement windows for your home.

Contact Us
logo
