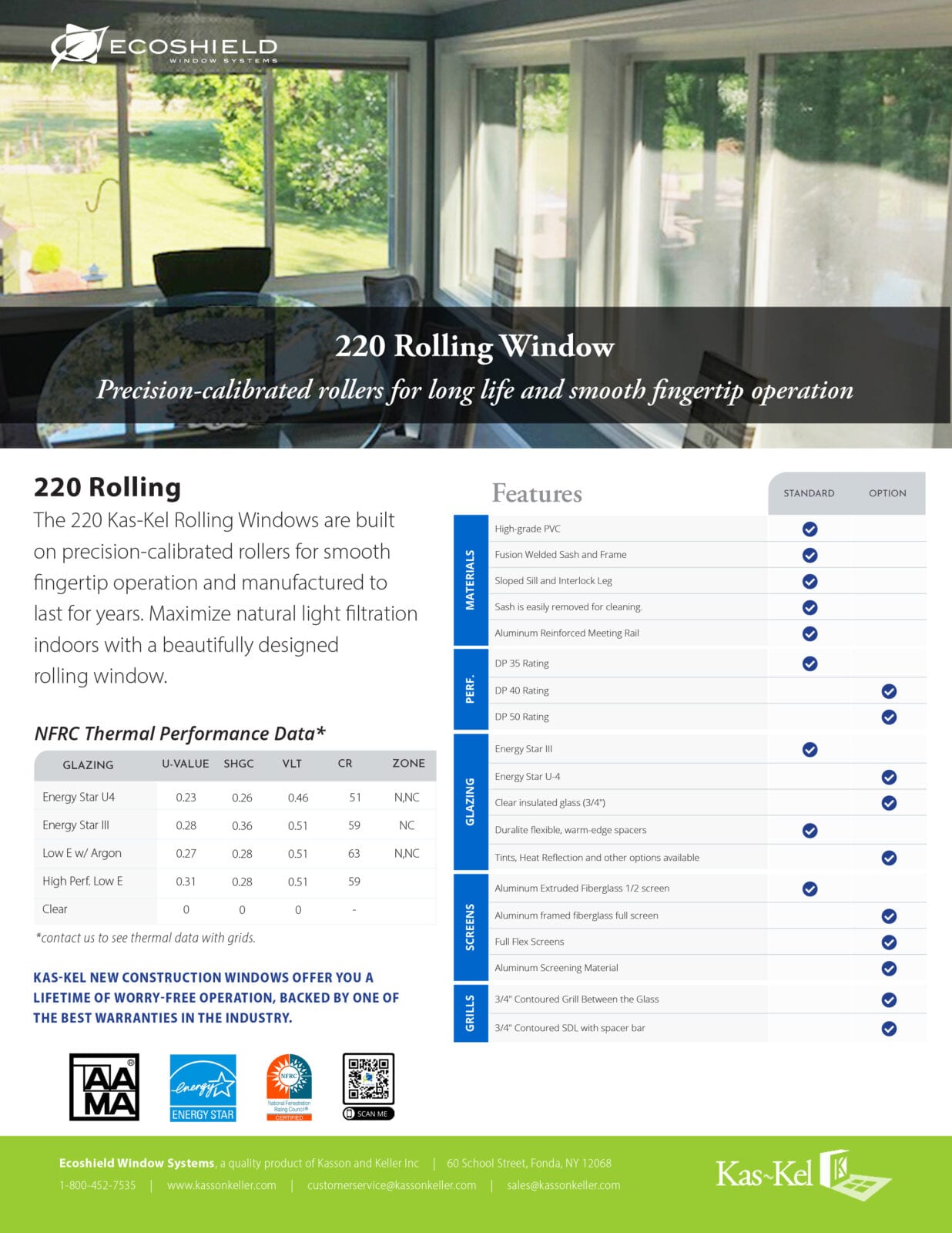

220 Rolling Window

precision-calibrated rollers for long life and smooth fingertip operation

Description

220 Rolling

Ecoshield Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.

All sashes are easily removed for cleaning.

Horizontal views
and maximum daylighting

Rolling windows make the most of a horizontal view while allowing for ventilation through a single or multiple sashes depending on the configuration. Maximize natural light filtration indoors with a rolling window.

Also called sliding windows, the rolling window involves at least two sashes side by side. The sashes can be opened in three configurations, either one is open while the adjacent one is closed, or both sashes can be opened simultaneously.

In a three-sash combination, the center sash remains stationary while the two sashes on either side can be rolled open for ventilation.

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Energy Star III

Options

Energy Star U-4
Clear insulated glass (3/4″)
Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

More About Glass Options

Performance

Standard

DP 35 Rating

Options

DP 40 Rating
DP 50 Rating

More about DP Ratings

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
Fusion Welded Sash and Frame
Sloped Sill with Interlocking Leg
Removable Sash for easy cleaning
Aluminum Reinforced Meeting Rail

Options

More About Vinyl Construction

Hardware

Standard

Ecoshield Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.

Superior Cam Lock

Our Cam Locks are made of alloyed cast steel to stand up to frequent use.
(inferior vinyl windows have plastic locks)
All windows over 28 inches tall have 2 sash locks for maximum protection
Produced in white or beige to seamlessly match your window frame
Increased leverage assures a weather tight seal when locked

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware

Screens

Standard

Aluminum Extruded Fiberglass 1/2 screen

Options

Aluminum framed fiberglass full screen
Full Flexscreens
Aluminum Screening Material

Screen Options

Grills

Multiple Grill Patterns Available

3/4″ Contoured Grill Between the Glass

Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes
3/4″ Contoured SDL with spacer bar

Our simulated divided light grill incorporates a space giving the look of true divided light

Grid Patterns

Profiles

Thermal Data

NFRC Thermal Performance Data

GLAZING	U-VALUE	SHGC	VLT	CR

Energy Star U4	0.23	0.26	0.46	51	N,NC
Energy Star III	0.28	0.36	0.51	59	NC
Low E w/ Argon	0.27	0.28	0.51	63	N,NC
High Perf. Low E	0.31	0.28	0.51	59
Clear Clear-Air-Clear	0	0	0

NFRC Thermal Performance Data (with Grids)

GLAZING	U-VALUE	SHGC	VLT	CR

Energy Star U4	0.24	0.24	0.41	47	All Zones
Energy Star III	0.28	0.33	0.45	59	NC
Low E w/ Argon	0.27	0.25	0.45	63	N,NC
High Perf. Low E	0.32	0.25	0.45	56
Clear Clear-Air-Clear	0	0	0

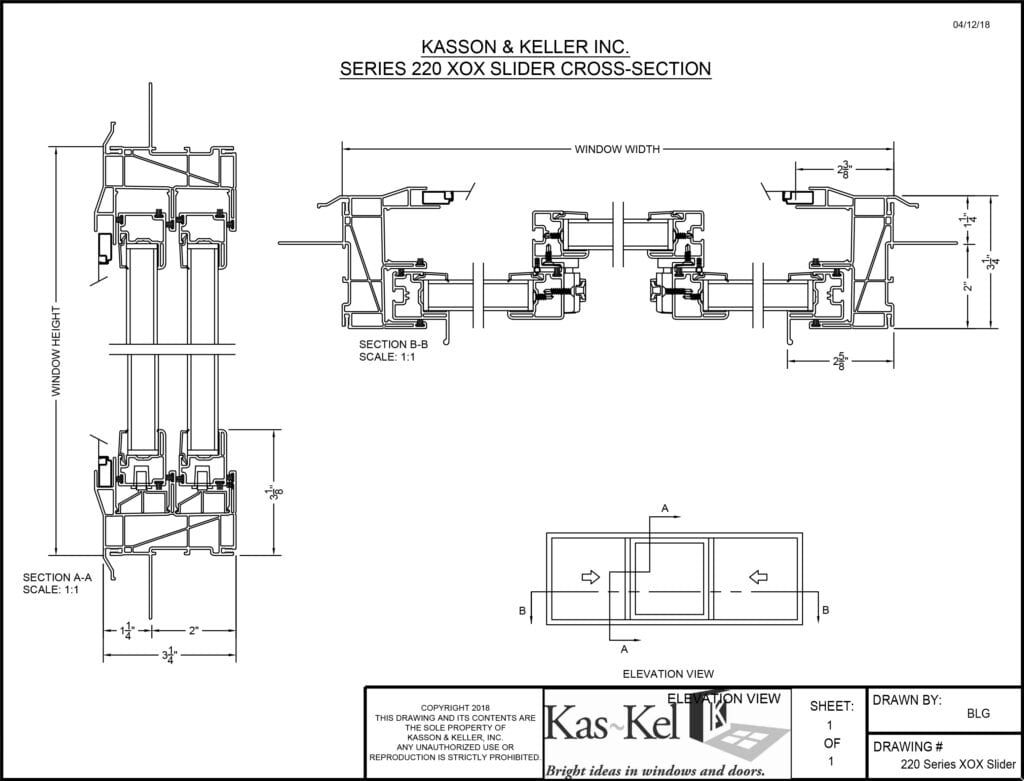

Cross Section

220 XOX Slider

220 XX Slider

Sizing

KAS-KEL 220/300C ROLLING/SLIDER

Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
3-0 / 3-0 x 3-0	35-1/2 x 35-1/2	36 x 36	14-3/16 x 29-7/16	14-3/16 x 29-7/16	12-3/4 x 30-1/2	2.70 sq ft
3-0 / 3-0 x 4-0	35-1/2 x 47-1/2	36 x 48	14-3/16 x 41-7/16	14-3/16 x 41-7/16	12-3/4 x42-1/2	3.75 sq ft
4-0 / 4-0 x 3-0	47-1/2 x 35-1/2	48 x 36	20-3/16 x 29-7/16	18-3/4 x 30-1/2	18-3/4 x 30-1/2	3.97 sq ft
4-0 / 4-0 x 4-0	47-1/2 x 47-1/2	48 x 48	20-3/16 x 41-7/16	18-3/4 x 42-1/2	18-3/4 x 42-1/2	5.53 sq ft
5-0 / 5-0 x 3-0	59-1/2 x 35-1/2	60 x 36	26-3/16 x 29-7/16	24-3/4 x 30-1/2	24-3/4 x 30-1/2	5.24 sq ft
5-0 / 5-0 x 4-0	59-1/2 x 47-1/2	60 x 48	26-3/16 x 41-7/16	24-3/4 x 42-1/2	24-3/4 x 42-1/2	7.30 sq ft
6-0 / 6-0 x 3-0	71-1/2 x 35-1/2	72 x 36	32-3/16 x 29-7/16	30-3/4 x 30-1/2	30-3/4 x 30-1/2	6.50 sq ft
6-0 / 6-0 x 4-0	71-1/2 x 47-1/2	72 x 48	32-3/16 x 41-7/16	30-3/4 x 42-1/2	30-3/4 x 42-1/2	9.07 sq ft
